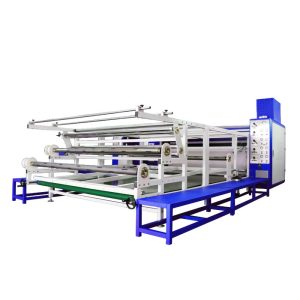

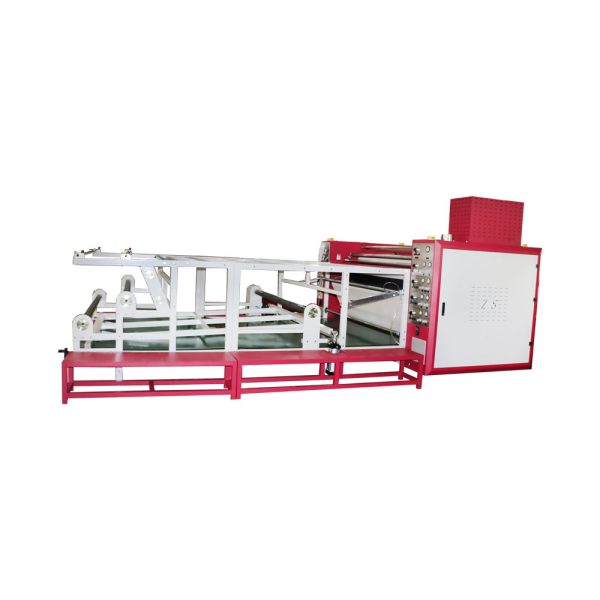

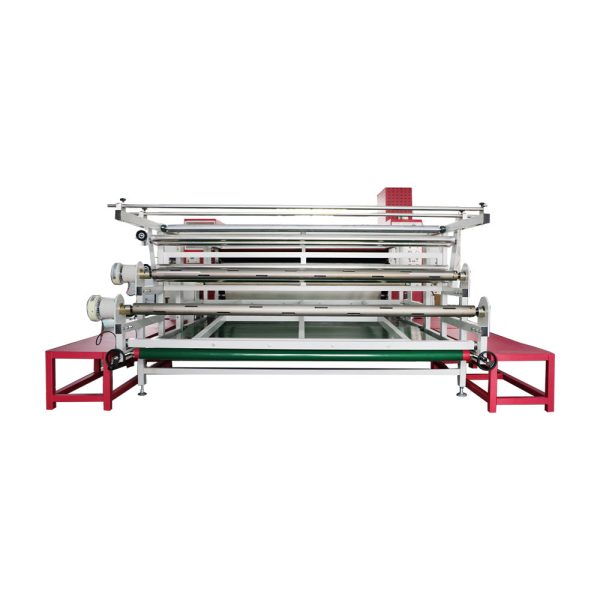

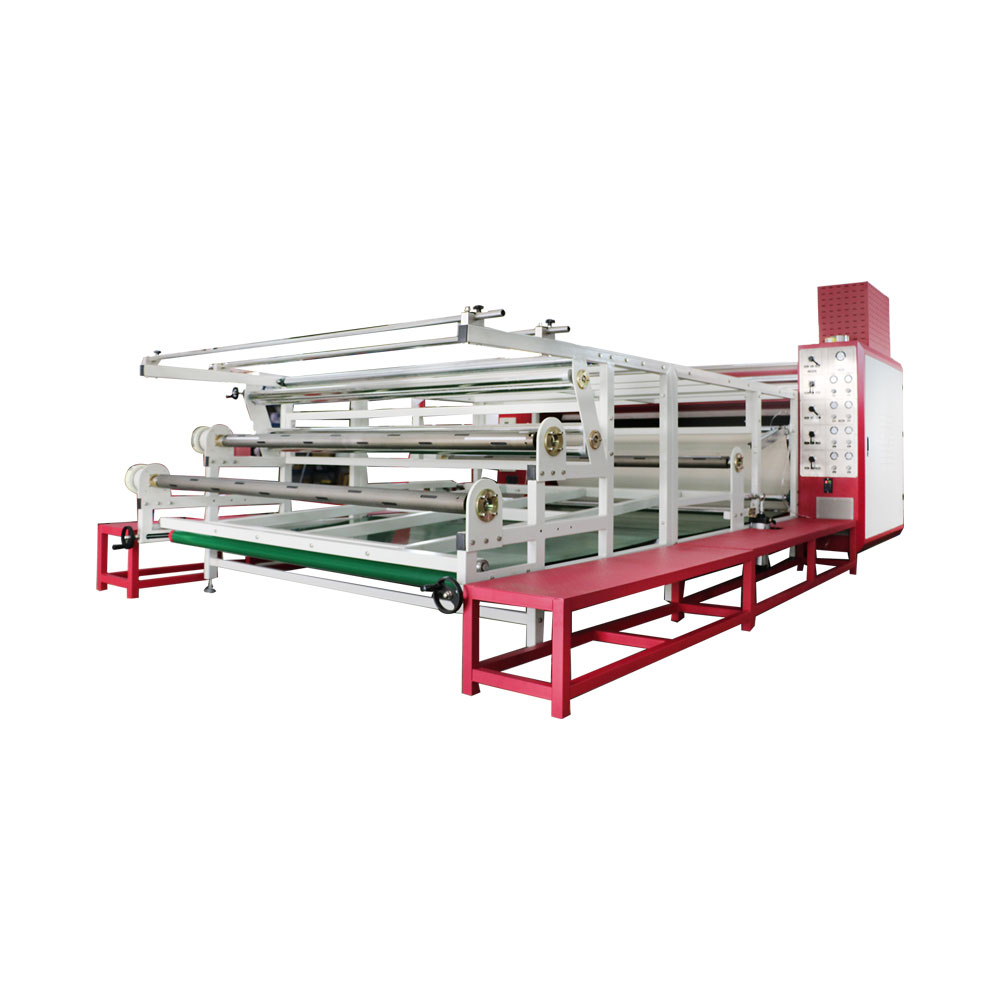

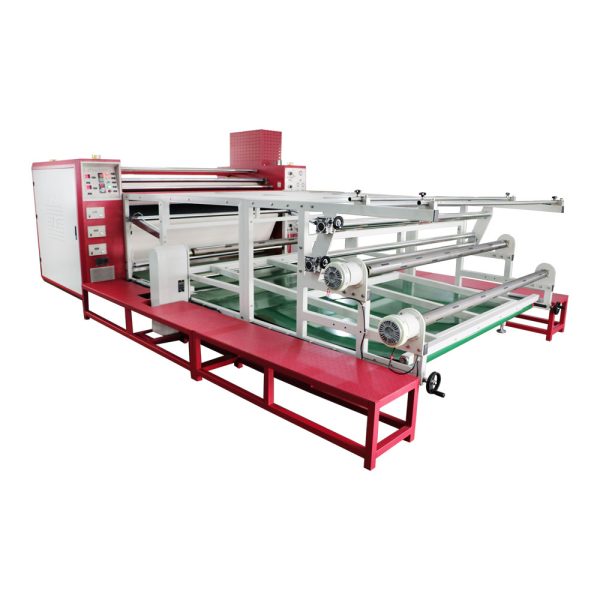

800mm drum roll heat transfer machine

High Performance Large Format Sublimation Calendar 800mm drum roll heat transfer machine
This is a customized Long work table design sublimation digital printing use FULL oil filled drum roll to roll rotary heat press machine.

Unique Key features:
1. Simple & easy operation long worktable design for fabric and sublimation paper spreading.
2. Well designed wasted sublimation collecting system.
3. Well designed fabric rolls rear collecting design.
4. Excellent sublimation color transfer output. Finished fabrics with bright color.

Technical Specifications


SPECIFICATIONS FOR ROLLER DIAMATER ZS-BA 800MM
Item
*
800*1700
800*1900
Roll diameter
800mm
Width
*
1700mm
1900mm
Speed
280-350m/h
Power7.528
*
70.5kw
70.5kw
Weight
2700/3000kg
Voltage
110V/220V/380V
Installation size
*
4950*2650*1980mm
4950*2850*1980mm
Packing size
*
2800*1500*1900mm
2050*1500*2200mm
Worktable Longth
2.5/3.5m/5m
Heat Method
Oil heating



Equipment Advantage


1.This 800mm drum roll heat transfer machine Dupont” rawmaterials blanket with the thickness of 10mm, It is imported from the United Ststes, which not only has good transfer effects bus also long service life.

800mm drum roll heat transfer machine Blanket

2.The roller inner/outer circular cylindrical precision machining, Precision grinding machine, Plating washighly Teflon, no color uniform heating drum.

800mm drum roll heat transfer machine durm

3.Imported from Taiwan stainless steel heating pipe and heat transfer oil, because it directly heat oil, the temperature can rise to 200 degree in 45 minutes or so.

800mm drum roll heat transfer machine heating pipes

4.Carbon brush connects collector ring by the electric conduction directly, which not only has good conductive performance but low maintenance costs, enjoying a long service life.

800mm drum roll heat transfer machine collect ring

Heat transfer Printing Process


Product Application


This 800mm drum roll heat transfer machine applicable to all kinds of clothing, home textiles, handbags, umbrellas, straw mats, shoes and hats, crafts, gifts, toys, advertising supplies, hot stamp, heat press machine, calender ans so on.

roller heat press machine Product Application







Fabric Sample For Free

If you hesitate to order this machine, maybe you can do a sample test first. Send us your design; we will heat transfer your design with this machine and send you the transferred textile fabric so that you can check the quality. All of these are free!
